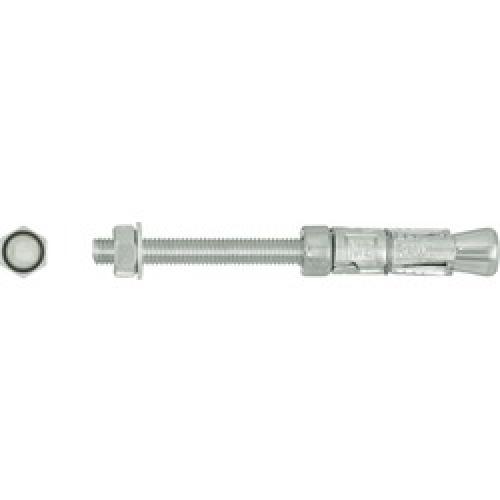

PROJECTING TYPE RAWLBOLT BZP M20 15P .DRILL SIZE 32MM

Product Code: 22766

Stock Availability: In stock

Rawlbolt Projecting Type BZP 20mm
Drill Size 32mm
15mm Projection - Max thickness of fixture
170mm - Overall Length

Installation Guide

Drill a hole of the required diameter and depth
Remove debris and thoroughly clean hole with brush and pump
Remove nut and washer and insert anchor into the hole. Tap home with hammer until flush with surface
Position fixture over the projecting bolt
Add washer and nut and tighten to recommended torque

Quantity	Price	Per
1 – 9	£478.23	Ten
10 +	£430.41	Ten
