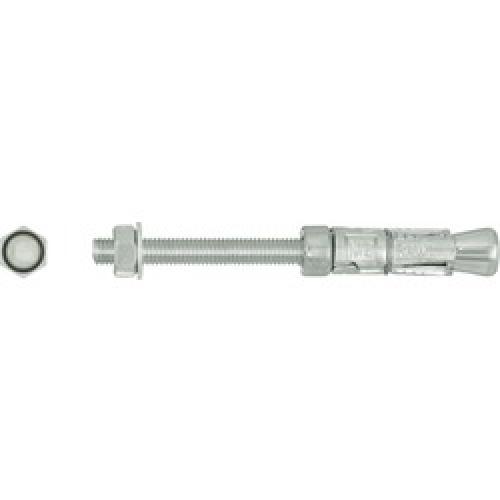

PROJECTING TYPE RAWLBOLT BZP M16 35P .DRILL SIZE 25MM

Product Code: 22764

Stock Availability: In stock

Rawlbolt Projecting Type BZP 16mm
Drill Size 25mm
35mm Projection - Max thickness of fixture
170mm - Overall Length

Installation Guide

Drill a hole of the required diameter and depth
Remove debris and thoroughly clean hole with brush and pump
Remove nut and washer and insert anchor into the hole. Tap home with hammer until flush with surface
Position fixture over the projecting bolt
Add washer and nut and tighten to recommended torque

Quantity	Price	Per
1 – 9	£112.70	Ten
10 +	£101.43	Ten
