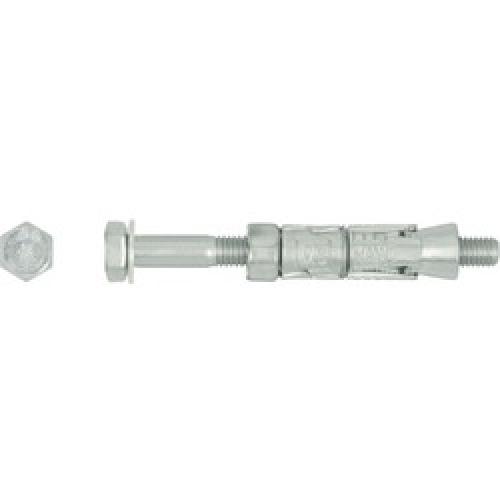

LOOSE BOLT TYPE RAWLBOLT BZP M16 15L .DRILL SIZE 25MM
Product Code: 22785
Stock Availability: In stock
Rawlbolt Loose Bolt Type BZP 16mmDrill Size 25mm
15mm - Max thickness of fixture
135mm - Overall Length
Installation Guide
- Drill a hole of required diameter and depth
- Remove debris and thoroughly clean hole with brush and pump
- Remove pre-assembled bolt and washer. Insert shield into hole and tap home with hammer until flush with surface
- Insert bolt with washer through fixture into the shield
- Tighten to the recommended torque
| Quantity | Price | Per |
|---|---|---|
| 1 – 9 | £109.10 | Ten |
| 10 + | £98.19 | Ten |
