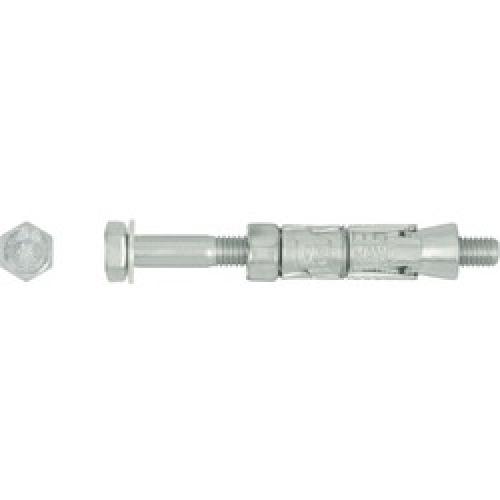

LOOSE BOLT TYPE RAWLBOLT BZP M12 60L .DRILL SIZE 20MM

Product Code: 22784

Stock Availability: In stock

Rawlbolt Loose Bolt Type BZP 12mm
Drill Size 20mm
60mm - Max thickness of fixture
140mm - Overall Length

Installation Guide

Drill a hole of required diameter and depth
Remove debris and thoroughly clean hole with brush and pump
Remove pre-assembled bolt and washer. Insert shield into hole and tap home with hammer until flush with surface
Insert bolt with washer through fixture into the shield
Tighten to the recommended torque

Quantity	Price	Per
1 – 24	£160.31	25
25 +	£144.28	25
