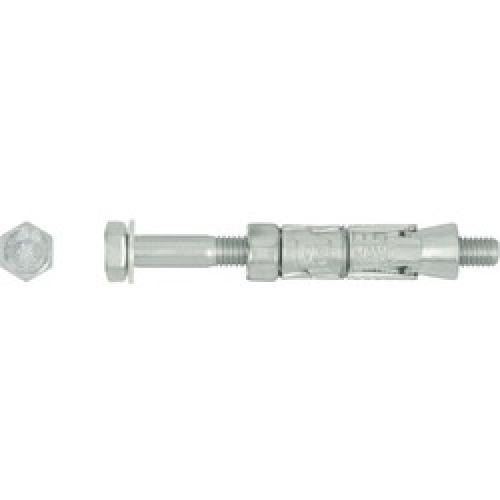

LOOSE BOLT TYPE RAWLBOLT BZP M10 25L .DRILL SIZE 16MM

Product Code: 22778

Stock Availability: In stock

Rawlbolt Loose Bolt Type BZP 10mm
Drill Size 16mm
25mm - Max thickness of fixture
90mm - Overall Length

Installation Guide

Drill a hole of required diameter and depth
Remove debris and thoroughly clean hole with brush and pump
Remove pre-assembled bolt and washer. Insert shield into hole and tap home with hammer until flush with surface
Insert bolt with washer through fixture into the shield
Tighten to the recommended torque

Quantity	Price	Per
1 – 49	£150.79	50
50 +	£135.71	50
